PY350T Motor Grader Equipment Smooth Operation With Cummins Engine

Name: PY350T Motor Grader Equipment Smooth Operation With Cummins Engine
Brand: changlin
Price: 5000 USD

China PY350T Motor Grader Equipment Smooth Operation With Cummins Engine wholesale

Brand Name : changlin

Model Number : PY350T

Place of Origin : CHINA

MOQ : 1

Price : USD5000-USD200000

Payment Terms : L/C, T/T

Supply Ability : 30units/per month

Delivery Time : 5-8work days

model : PY350T

Engine model : Cummins QSM11-C330

Rated power : 246kW@2100rpm

Dimension(L×W×H) : 12500×3300×3700 (mm)

Operating weight (standard) : 28000KG

Travelling speed, forward : 5.5/8.6/13.3/20.3/29/43

Travelling speed, reverse : 5.5/13.3/29

Tractive force (f=0.75) : 144KN

Max. steering angle of front wheels : 49°

Max. lean angle of front wheels : 17°

Max. oscillation angle of front axle : 15°

Frame articulation angle : 25°

Min. turning radius using articulation : 9m

Maximum lift above ground : 515mm

Maximum grading depth : 735mm

Maximum blade position angle : 80°

Blade cutting angle : 23°~73°

Circle reversing rotation : 360°

Moldboard width × height : 4620×695mm

Name : Motor Grader Equipment

Contact Now

MOTOR GRADERPY350T

Equipped with Cummins engine, PY350T motor grader adopts high-strength slewing bearing and overload protection worm gear box, suitable for heavy load conditions. This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.

PY350T Motor Grader Equipment Smooth Operation With Cummins Engine Robust Chassis Frame

Box-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.

PY350T Motor Grader Equipment Smooth Operation With Cummins Engine Smooth Operation

A turntable of four-inner gear guide type is included in the heat-treated rotating ring structure, which allows for smooth 360° rotation. The optimal curvature of the moldboard enables all types of soil to be moved freely and efficiently.

PY350T Motor Grader Equipment Smooth Operation With Cummins Engine

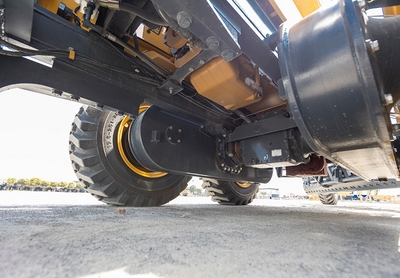

Rear Axle Drive System

By using large-size rear drive axle, the reliability of the transmission is significantly improved.

PY350T Motor Grader Equipment Smooth Operation With Cummins Engine

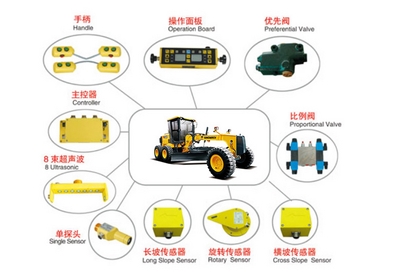

Automatic Leveling Device

The automatic leveling device as a 2D machine control system enables precise height and slope control, giving a high flexibility in the selection of sensors and application fields.
